IL2410 - Two-Tone Telephone Ringer

IL2410 Description

TECHNICAL DATA IL2410 Tone Ringer The IL2410 is a bipolar integrated circuit designed for telephone bell replacement.* Designed for Telepho.
NAME VCC RE LFI LF0 GND HF0 HFI OUT PIN 1 2 3 4 5 6 7 8 Positive power supply.

IL2410 Applications

* of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and VOUT should be constrained to the range GND≤(VIN or VOUT)≤VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs must be lef

📥 Download Datasheet

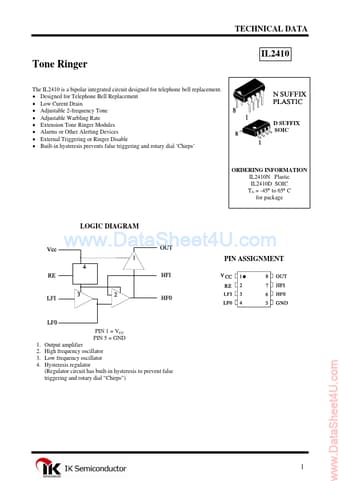

Preview of IL2410 PDF
