IN7440 Datasheet - IK Semiconductor

IN7440 Dual 4-Input NAND Buffer

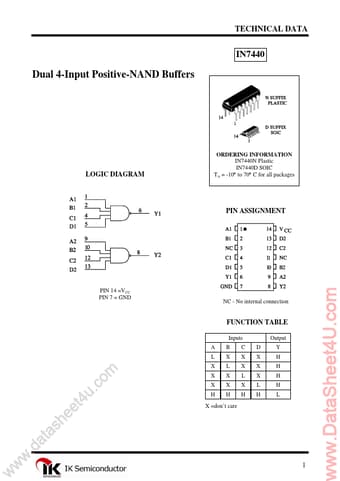

TECHNICAL DATA IN7440 Dual 4-Input Positive-NAND Buffers LOGIC DIAGRAM ORDERING INFORMATION IN7440N Plastic IN7440D SOIC TA = -10° to 70° C for all packages PIN ASSIGNMENT PIN 14 =VCC PIN 7 = GND NC - No internal connection FUNCTION TABLE Inputs A L X X X H B X L X X H C X X L X H D X X X L H Output Y H H H H L w w w .d h s a t a ee . u t4 m o c X =don’t care 1 www.DataSheet4U.com IN7440 MAXIMUM RATINGS Symbol VCC VIN IOL Tstg Parameter Supply Voltage Input Volta.

IN7440 Datasheet (221.42 KB)

Preview of IN7440 PDF
IN7440 Datasheet Preview Page 2 IN7440 Datasheet Preview Page 3

Datasheet Details

Part number:

IN7440

Manufacturer:

IK Semiconductor

File Size:

221.42 KB

Description:

Dual 4-input nand buffer.
