IN74AC652 Datasheet (IK Semiconductor) - Octal Bus Transceiver/Register

IN74AC652, Octal Bus Transceiver/Register

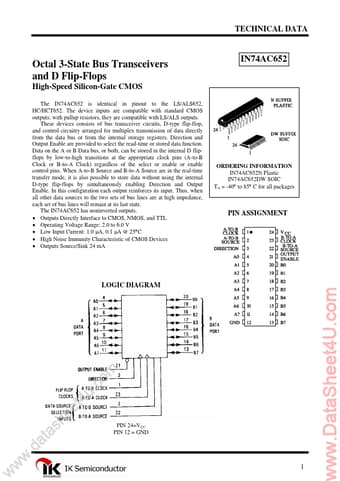

TECHNICAL DATA Octal 3-State Bus Transceivers and D Flip-Flops High-Speed Silicon-Gate CMOS The IN74AC652 is identical in pinout to the LS/ALS652, HC/HCT652.

The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs.

These devices consists of bus transceiver circuits, D-type flip-flop, and control circuitry arranged for multiplex transmission of data directly from the data bus or from the internal storage registers.

Direction and

IN74AC652 Features

* 54 7.62 0° 2.92 7.62 0.2 0.38 0.56 1.78 C -T- SEATING
