IMP5218 Pllug and Pllay SCSII Termiinattor

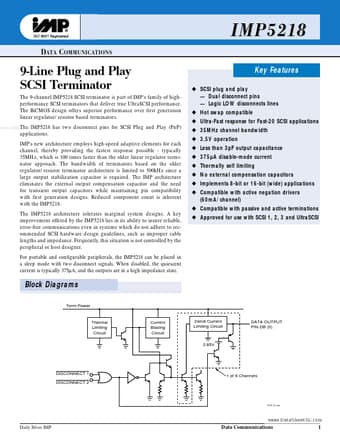

IMP51 1 1/51 1 2 IMP52 8 DATA COMMUNICATIONS 9-Line Plug and Play SCSI Terminator The 9-channel IMP5218 SCSI terminator is part of IMP's family of highperformance SCSI terminators that deliver true UltraSCSI performance. The BiCMOS design offers superior performance over first generation linear regulator/resistor based terminators. The IMP5218 has two disconnect pins for SCSI Plug and Play (PnP) www.DataSheet4U.com applications. IMP's new architecture employs high-speed adaptive elements for ea.

IMP5218 Features

* x SCSI plug and play

* Dual disconnect pins

* Logic LOW disconnects lines x Hot swap compatible x Ultra-Fast response for Fast-20 SCSI applications x 35MHz channel bandwidth x 3.5V operation x Less than 3pF output capacitance x 375µA disable-mode current x Thermally self limiting x N
