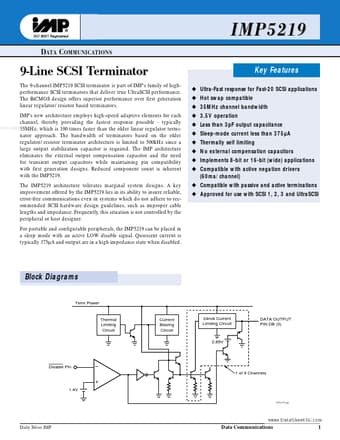

IMP5219 SCSII Termiinattor

IMP51 IMP52 1 1/51 1 2 9 DATA COMMUNICATIONS 9-Line SCSI Terminator The 9-channel IMP5219 SCSI terminator is part of IMP's family of highperformance SCSI terminators that deliver true UltraSCSI performance. The BiCMOS design offers superior performance over first generation linear regulator/resistor based terminators. IMP's new architecture employs high-speed adaptive elements for each channel, thereby providing the fastest response possible - typically www.DataSheet4U.com 35MHz, which is 100 t.

IMP5219 Features

* Ultra-Fast response for Fast-20 SCSI applications Hot swap compatible 35MHz channel bandwidth 3.5V operation Less than 3pF output capacitance Sleep-mode current less than 375µA Thermally self limiting No external compensation capacitors Implements 8-bit or 16-bit (wide) applications Compatible with
