IMP5226

18-Line Plug and Play SCSI Terminator

IMP5226 Features

* x Ultra-Fast response for Fast-20 SCSI x 35MHz channel bandwidth x Sleep-mode current less than 150µA

* Disconnects terminator from lows x NO external compensation capacitors x Compatible with active negation drivers x Compatible with passive and active terminations x Approved for use with

IMP5226 Datasheet (145.31 KB)

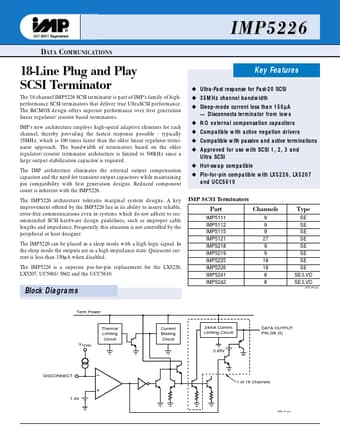

Preview of IMP5226 PDF

Datasheet Details

Part number:

IMP5226

Manufacturer:

IMP

File Size:

145.31 KB

Description:

18-line plug and play scsi terminator.
I M P 5 2 2 16 DATA COMMUNICATIONS 18-Line Plug and Play SCSI Terminator The 18-channel IMP5226 SCSI terminator is part of IMP's family of highperfo.
