IMP5225 - 18-Line Plug and Play SCSI Terminator

Datasheet Summary

Description

section).

The IMP architecture eliminates the output compensation capacitor required in linear regulator/ resistor designs.

The IMP5225 architecture tolerates marginal system designs.

Features

  • x SCSI Plug and Play.
  • Dual active LOW disconnect pins x Ultra-Fast response for Fast-20 SCSI x 35MHz channel bandwidth x Sleep-mode current less than 150µA.
  • Disconnects terminator from lows x NO external compensation capacitors x Compatible with active negation drivers x Compatible with passive and active terminations x Approved for use with SCSI 1, 2, 3 and Ultra SCSI x Hot swap compatible x Pin-for-pin compatible with LX5225, LX5205 and UC5607 transient protection capacitors.

📥 Download Datasheet

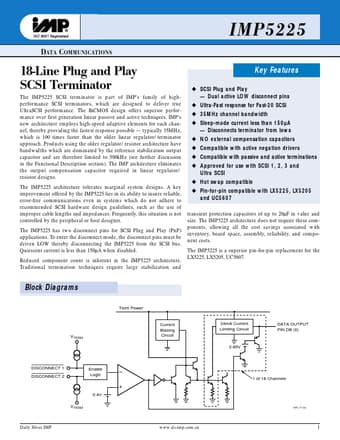

Datasheet preview – IMP5225

Datasheet Details

Part number IMP5225
Manufacturer IMP
File Size 196.26 KB
Description 18-Line Plug and Play SCSI Terminator
Datasheet download datasheet IMP5225 Datasheet
Additional preview pages of the IMP5225 datasheet.

📁 Similar Datasheet

  • IMP522 - Dual EL Lamp Driver (IMP Inc)
  • IMP525 - SINGLE CELL BATTERY POWERED ELECTROLUMINESCENT LAMP DRIVER/INVERTER (IMP Inc)
  • IMP527 - SINGLE CELL BATTERY POWERED ELECTROLUMINESCENT LAMP DRIVER/INVERTER (IMP Inc)
  • IMP528 - HIGH-VOLTAGE EL LAMP DRIVER (IMP Inc)
  • IMP560 - POWER EFFICIENT EL LAMP DRIVER (IMP Inc)
  • IMP - 1...12 Watt DC-DC Converters (Power-One)
  • IMP06160230P25A - LITHIUM-ION RECHARGEABLE BATTERIES (Farasis Energy)
  • iMP1 - AC-DC / Configurable (Emerson)
  • IMP11 - Switching diode (Rohm)
  • IMP1232 - 5V P Power Suppl er Supply Monit y Monitor and or and Reset Cir eset Circuit (IMP Inc)
Other Datasheets by IMP
  • IMP5226 - 18-Line Plug and Play SCSI Terminator
  • IMP5218 - Pllug and Pllay SCSII Termiinattor
  • IMP5219 - SCSII Termiinattor
  • IMP5111 - 9-Line SCSI Terminator
  • IMP5112 - 9-Line SCSI Terminator
  • IMP5121 - 27-Line Plug and Play SCSI Terminator
  • IMP2119 - 9-Line ULTRA3 LVD/SE SCSI Terminator
  • IMP3211 - Half bridge drive circuit

Full PDF Text Transcription

Click to expand full text
I M P 5 2 2 51 DATA COMMUNICATIONS 18-Line Plug and Play SCSI Terminator The IMP5225 SCSI terminator is part of IMP's family of highperformance SCSI terminators, which are designed to deliver true UltraSCSI performance. The BiCMOS design offers superior performance over first generation linear passive and active techniques. IMP's new architecture employs high-speed adaptive elements for each channel, thereby providing the fastest response possible — typically 35MHz, which is 100 times faster than the older linear regulator/terminator approach. Products using the older regulator/resistor architecture have bandwidths which are dominated by the reference stabilization output capacitor and are therefore limited to 500kHz (see further discussion in the Functional Description section).
