2N6033 - Silicon NPN Power Transistor

2N6033 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO=-120V(Min). Minimum Lot-to-Lot variations for robust device Performance and reliable operatio.

2N6033 Applications

* Power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNI T VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 120 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 40 A IB Base Current-Continuous PD

📥 Download Datasheet

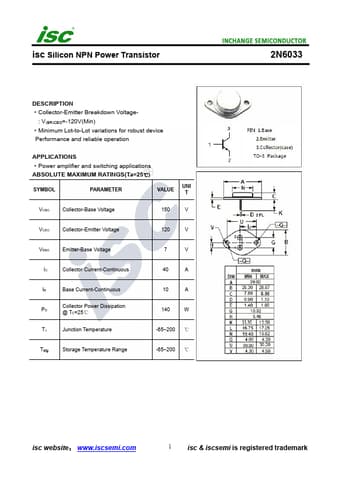

Preview of 2N6033 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N6033
Manufacturer
INCHANGE
File Size
215.02 KB
Datasheet
2N6033-INCHANGE.pdf
Description
Silicon NPN Power Transistor
