2SB407 PNP Transistor

2SB407 Description

isc Silicon PNP Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -30V(Min). Low Collector Saturation Voltage: VCE(sat)= -1. Wide area.

2SB407 Applications

* Designed for power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -10 V IC Collector Current-Continuous PC Collector Power Dissipation @Tc=

📥 Download Datasheet

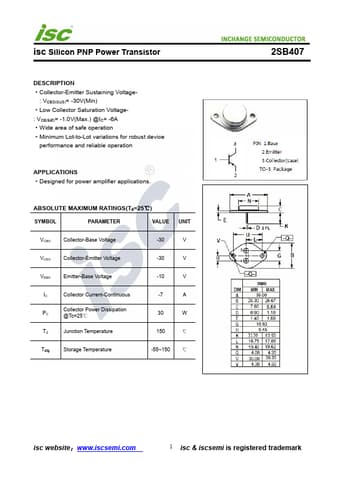

Preview of 2SB407 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB407
Manufacturer
INCHANGE
File Size
199.70 KB
Datasheet
2SB407-INCHANGE.pdf
Description
PNP Transistor
