2SC3156 - NPN Transistor

2SC3156 Description

isc Silicon NPN Power Transistor .
High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 800V(Min). Fast Switching Speed. Wide Area of Safe Operation. Minimum Lot-to-Lo.

2SC3156 Applications

* Switching regulator and high voltage switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 900 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 6 A ICM Collector

📥 Download Datasheet

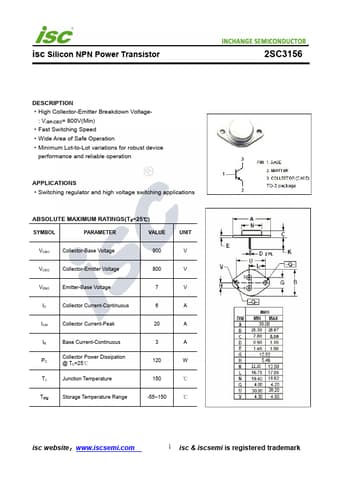

Preview of 2SC3156 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3156
Manufacturer
INCHANGE
File Size
186.10 KB
Datasheet
2SC3156-INCHANGE.pdf
Description
NPN Transistor
