2SC3150 - NPN Transistor

2SC3150 Description

Ordering number:EN1069C NPN Triple Diffused Planar Silicon Transistor 2SC3150 800V/3A Switching Regulator Applications .

2SC3150 Features

* High breakdown voltage (VCBO≥900V).
* Fast switching speed.
* Wide ASO. Package Dimensions unit:mm 2010C [2SC3150] Specifications JEDEC : TO-220AB EIAJ : SC-46 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-t

📥 Download Datasheet

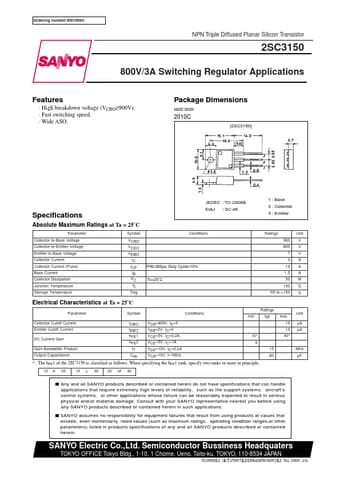

Preview of 2SC3150 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3150
Manufacturer
Sanyo Semicon Device
File Size
100.81 KB
Datasheet
2SC3150_SanyoSemiconDevice.pdf
Description
NPN Transistor
