2SC3146 - NPN Transistor

2SC3146 Description

isc Silicon NPN Darlington Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min). High DC Current Gain : hFE= 2000(Min) @IC= 3. Wide Area of Safe Operation.

2SC3146 Applications

* Designed for high-speed drivers applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 70 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 7 A Collector Power Dissipation @ T

📥 Download Datasheet

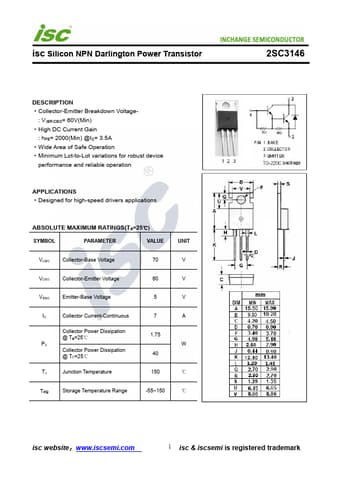

Preview of 2SC3146 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3146
Manufacturer
INCHANGE
File Size
189.92 KB
Datasheet
2SC3146-INCHANGE.pdf
Description
NPN Transistor
