2SC3180 - NPN Transistor

Product Overview

📥 Download Datasheet

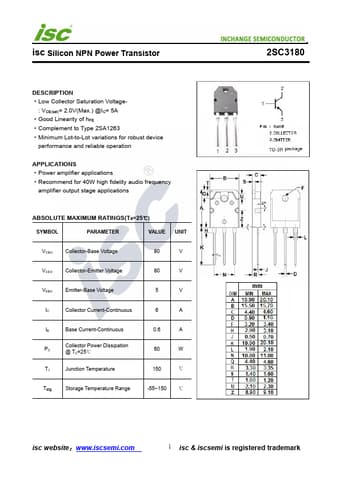

Datasheet preview – 2SC3180

Datasheet Details

Part number 2SC3180
Manufacturer INCHANGE
File Size 198.92 KB
Description NPN Transistor
Datasheet download datasheet 2SC3180 Datasheet
Additional preview pages of the 2SC3180 datasheet.

Product details

Description

Low Collector Saturation Voltage- : VCE(sat)= 2.0V(Max.) @IC= 5A Good Linearity of hFE Complement to Type 2SA1263 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power amplifier applications Recommend for 40W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 80 V VEBO
