2SC3184 - NPN Triple Diffused Planar Silicon Transistor

Sanyo Semicon Device

2SC3184 Description

Ordering number:EN1252C NPN Triple Diffused Planar Silicon Transistor 2SC3184 800V/0.5A Switching Regulator Applications .

2SC3184 Features

* High breakdown voltage (VCBO≥900V).
* Fast switching speed.
* Wide ASO. Package Dimensions unit:mm 2010C [2SC3184] Specifications JEDEC : TO-220AB EIAJ : SC-46 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-t

📥 Download Datasheet

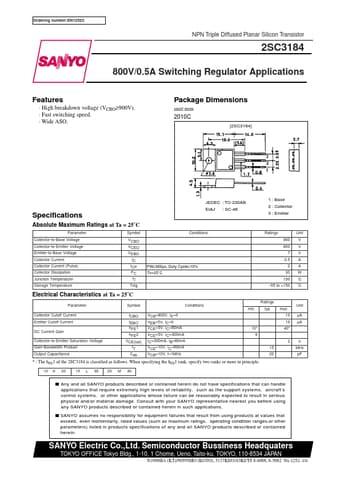

2SC3184 Datasheet Preview — Preview of 2SC3184 PDF

Datasheet Details

Part number: 2SC3184
Manufacturer: Sanyo Semicon Device
File Size: 96.89 KB
Datasheet: 2SC3184_SanyoSemiconDevice.pdf
Description: NPN Triple Diffused Planar Silicon Transistor
