2SC3907S - NPN Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 180V(Min) Good Linearity of hFE Complement to Type 2SA1516S Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power amplifier applications Recommend for 80W high fidelity audi

📥 Download Datasheet

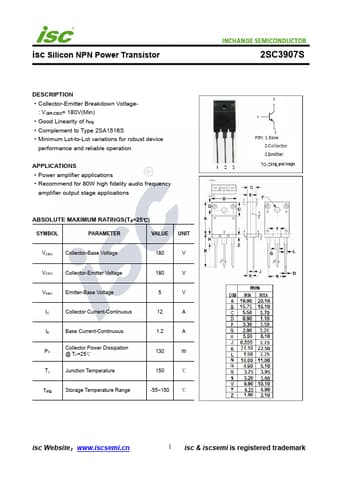

Datasheet preview – 2SC3907S

Datasheet Details

Part number 2SC3907S
Manufacturer INCHANGE
File Size 236.80 KB
Description NPN Transistor
Datasheet download datasheet 2SC3907S Datasheet
