2SC4546 NPN Transistor

2SC4546 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC4546 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min). High Switching Speed. 100% avalanche tested. Minimum Lot-to-Lot variation.

2SC4546 Applications

* Designed for switching regulator, lighting inverter and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 600 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continu

📥 Download Datasheet

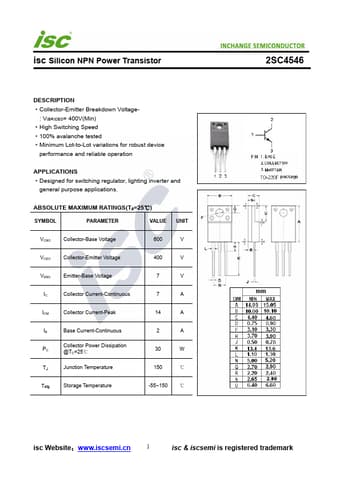

Preview of 2SC4546 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC4546
Manufacturer
INCHANGE
File Size
178.84 KB
Datasheet
2SC4546-INCHANGE.pdf
Description
NPN Transistor
