2SD1428 NPN Transistor

2SD1428 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD1428 .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. Low Saturation Voltage. Built-in Damper Diode. 100% avalanche.

2SD1428 Applications

* Color TV horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 6 A IE Emitter Current P

📥 Download Datasheet

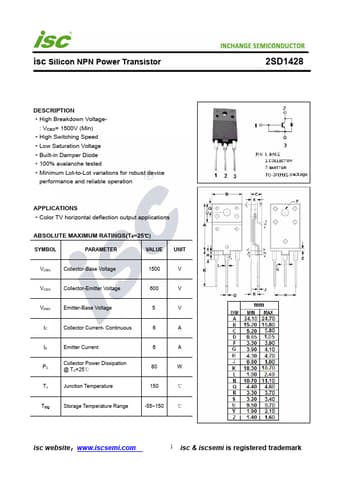

Preview of 2SD1428 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1428
Manufacturer
INCHANGE
File Size
185.62 KB
Datasheet
2SD1428-INCHANGE.pdf
Description
NPN Transistor
