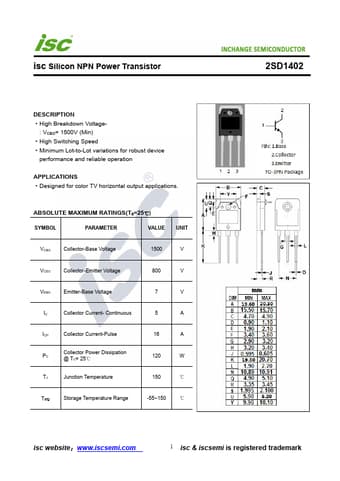

2SD1402 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD1402

Manufacturer:

INCHANGE

File Size:

213.54kb

Download:

📄 Datasheet

Description:

Npn transistor.

High Breakdown Voltage- : VCBO= 1500V (Min)

High Switching Speed

Minimum Lot-to-Lot variations for robust

2SD1402 Application

• Applications
• Designed for color TV horizontal output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO
