2SD2051 NPN Transistor

2SD2051 Description

isc Silicon NPN Darlington Power Transistor INCHANGE Semiconductor 2SD2051 .
High DC Current Gain : hFE= 4000(Min) @IC= 1A. Low Collector Saturation Voltgae- : VCE(sat)= 1. Incorporating a built-in.

2SD2051 Applications

* For low-frequency amplification ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 50-70 V VCEO Collector-Emitter Voltage 50-70 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 1.6 A ICP Collector Current-Peak Collecto

📥 Download Datasheet

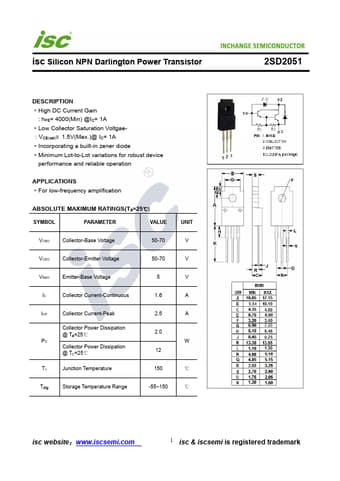

Preview of 2SD2051 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD2051
Manufacturer
INCHANGE
File Size
189.64 KB
Datasheet
2SD2051-INCHANGE.pdf
Description
NPN Transistor
