2SD2055 NPN Transistor

2SD2055 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD2055 .
High DC Current Gain - : hFE =20(Min)@ IC= 4A. Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 60V(Min). Minimum Lot-to-Lot variations.

2SD2055 Applications

* Designed for use in high power audio amplifiers utilizing complementary or quasi complementary circuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO Collector-Base Voltage 80 VCEO Collector-Emitter Voltage 60 VEBO Emitter-Base Voltage 5 IC Collector Current-Conti

📥 Download Datasheet

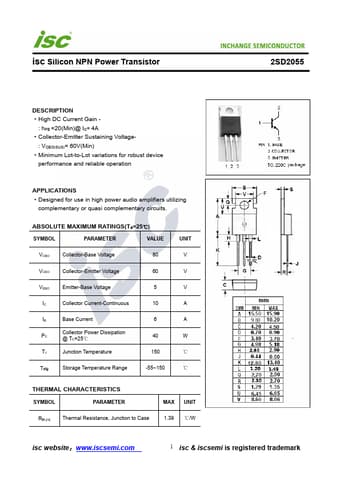

Preview of 2SD2055 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD2055
Manufacturer
INCHANGE
File Size
180.98 KB
Datasheet
2SD2055-INCHANGE.pdf
Description
NPN Transistor
