2SD2053 NPN Transistor

2SD2053 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 150V(Min). Wide Area of Safe Operation. Complement to Type 2SB1362. Minimum Lot-to-L.

2SD2053 Applications

* Designed for high power amplifications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 150 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 9 A ICP Collector Current-Pulse Colle

📥 Download Datasheet

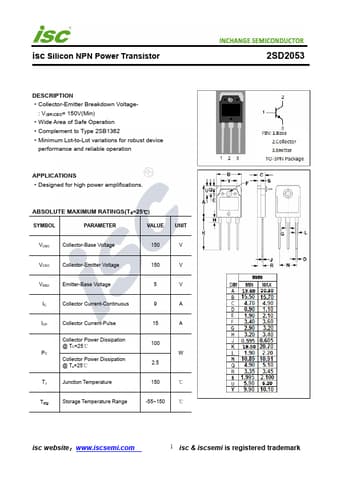

Preview of 2SD2053 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD2053
Manufacturer
INCHANGE
File Size
198.74 KB
Datasheet
2SD2053-INCHANGE.pdf
Description
NPN Transistor
