2SK1940-01 - N-Channel MOSFET

2SK1940-01 Description

isc N-Channel MOSFET Transistor .
Drain Current. ID= 12A@ TC=25℃. Drain Source Voltage- : VDSS= 600V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations.

2SK1940-01 Applications

* Switching regulator
* UPS
* DC-DC converters
* General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 12 A IDM Drain Current-Si

📥 Download Datasheet

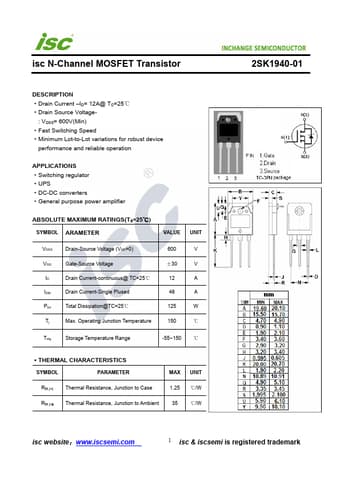

Preview of 2SK1940-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1940-01
Manufacturer
INCHANGE
File Size
232.59 KB
Datasheet
2SK1940-01-INCHANGE.pdf
Description
N-Channel MOSFET
