2SK1938-01 - N-Channel MOSFET

2SK1938-01 Description

isc N-Channel MOSFET Transistor .
Drain Current. ID=18A@ TC=25℃. Drain Source Voltage- : VDSS=500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations fo.

2SK1938-01 Applications

* Switching regulator
* UPS
* DC-DC converters
* General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VDSS VGS ID IDM Drain-Source Voltage (VGS=0) Gate-Source Voltage Drain Current-continuous@ TC=25℃ Drain Current-Single Plused Ptot Total Dissipation@TC=2

📥 Download Datasheet

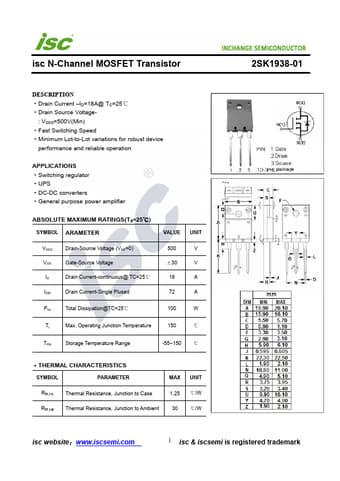

Preview of 2SK1938-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1938-01
Manufacturer
INCHANGE
File Size
232.64 KB
Datasheet
2SK1938-01-INCHANGE.pdf
Description
N-Channel MOSFET
