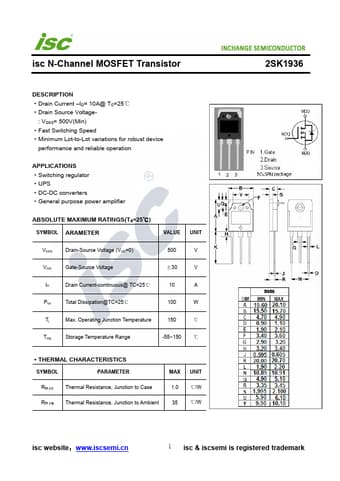

2SK1936 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SK1936

Manufacturer:

Inchange Semiconductor

File Size:

219.19kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

Drain Current   –ID= 10A@ TC=25℃

Drain Source Voltage- : VDSS= 500V(Min)

Fast Switching Spee

2SK1936 Application

• Applications
• Switching regulator
• UPS
• DC-DC converters
• General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(
