2SK1937 N-Channel MOSFET Transistor

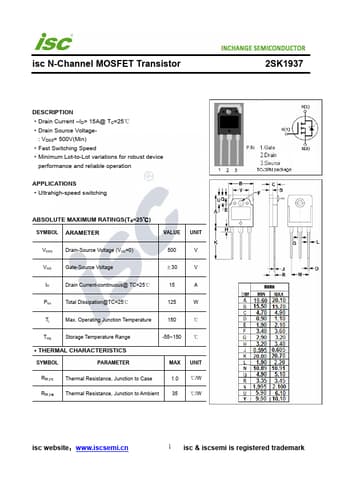

📥 Download Datasheet  Datasheet Preview Page 1

Description

isc N-Channel MOSFET Transistor .
Drain Current. ID= 15A@ TC=25℃. Drain Source Voltage- : VDSS= 500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations.

📥 Download Datasheet

Preview of 2SK1937 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SK1937
Manufacturer
Inchange Semiconductor
File Size
219.42 KB
Datasheet
2SK1937-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor

Applications

* Ultrahigh-speed switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 15 A Ptot Total Dissipation@TC=25℃ 125 W Tj Max. Operating Junction Temperature 15
