2SK1933 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

Part number	2SK1933
Manufacturer	Hitachi Semiconductor
File Size	48.86 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK1933 Datasheet

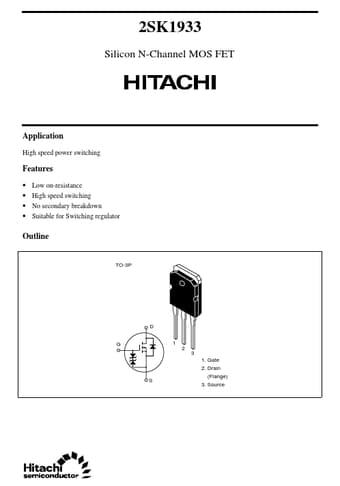

Additional preview pages of the 2SK1933 datasheet.

Low on-resistance High speed switching No secondary breakdown Suitable for Switching regulator Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1933 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10 µs, duty cycle ≤ 1 % 2. Value at Tc = 25°C Symbol.
