2SK2803 Datasheet, Mosfet, INCHANGE

2SK2803 Features

  • Mosfet
  • Drain Current
      –ID= 3A@ TC=25℃
  • Drain Source Voltage- : VDSS= 450V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 2.8Ω(Max)
  • 100% av

PDF File Details

Part number:

2SK2803

Manufacturer:

INCHANGE

File Size:

247.56kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

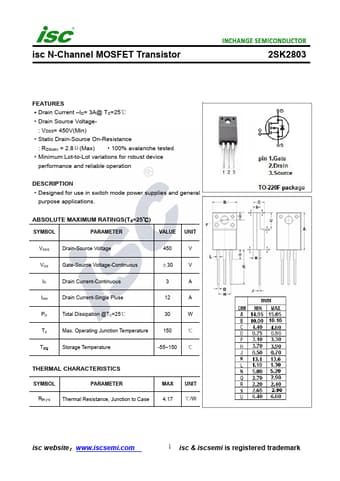

  • Datasheet Preview: 2SK2803 📥 Download PDF (247.56kb)
    Page 2 of 2SK2803

    2SK2803 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 450 V VGS Gate-Source Voltage-Continu
