Part number:
2SK2800
Manufacturer:
Hitachi Semiconductor
File Size:
52.19 KB
Description:
Silicon n channel mos fet.

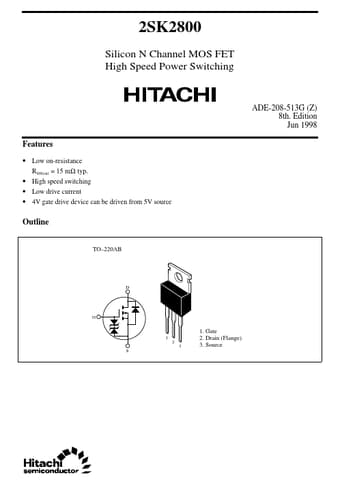

* Low on-resistance R DS(on) = 15 mΩ typ.
* High speed switching
* Low drive current
* 4V gate drive device can be driven from 5V source Outline TO
* 220AB D G 1 2 S 3 1. Gate 2. Drain (Flange) 3. Source 2SK2800 Absolute Maximum Ratings (Ta = 25°C) Item D
2SK2800
Hitachi Semiconductor
52.19 KB
Silicon n channel mos fet.
