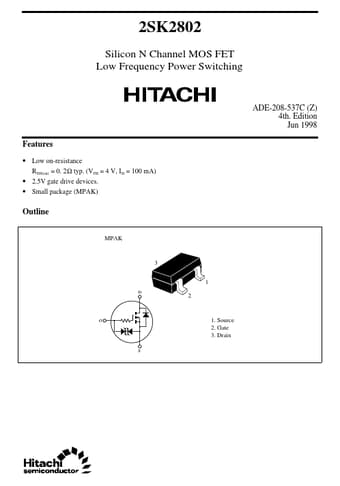

Low on-resistance R DS(on) = 0. 2 Ω typ. (VGS = 4 V, I D = 100 mA).
2.5V gate drive devices.
Small package (MPAK)
Outline
MPAK
3 1
D
2
G
1. Source 2. Gate 3. Drain
S
2SK2802
Absolute Maximum Ratings (Ta = 25°C)
Item Drain to source voltage Gate to source voltage Drain current Drain peak current Channel dissipation Channel temperature Storage temperature Note: 1. PW ≤ 10 µs, duty cycle ≤ 1 % Symbol VDSS VGSS ID I D(pulse) Pch Tch Tstg
Note1 Note2
Ratings 30 ±1.
