2SK2828 - Silicon N-Channel MOSFET

Hitachi Semiconductor

📥 Download Datasheet

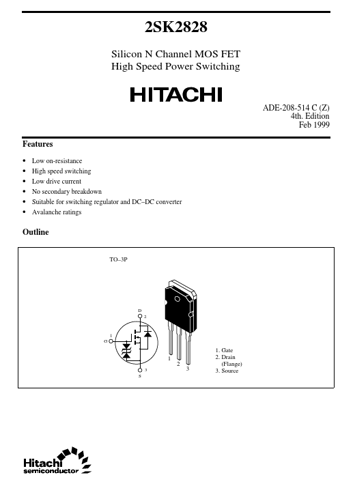

2SK2828 Datasheet Preview — Preview of 2SK2828 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2828
Manufacturer	Hitachi Semiconductor
File Size	45.64 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK2828_HitachiSemiconductor.pdf

2SK2828 Product details

Features

Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator and DC.
DC converter Avalanche ratings Outline TO.
3P D 2 1 G 1 3 S 2 3 1. Gate 2. Drain (Flange) 3. Source 2SK2828 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Channel dissipation Channel.
