2SK2825, Silicon N-Channel MOSFET

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type 2SK2825 For Portable Equipment High Speed Switch Applications Analog Switch Applications <.

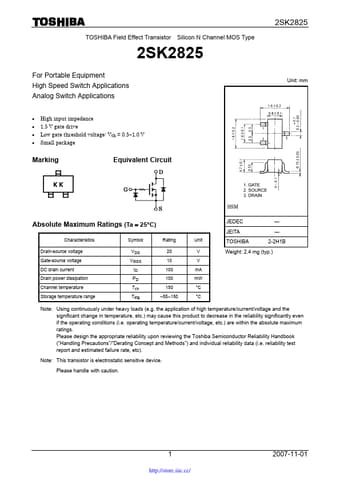

datasheet Preview Page 1 from Datasheet4u.com

2SK2825_ToshibaSemiconductor.pdf

2SK2825 Datasheet Preview — Preview of 2SK2825 PDF

Datasheet Details

Part number:

2SK2825

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

284.37 KB

Description:

Silicon N-Channel MOSFET

Applications

* Analog Switch Applications
* High input impedance
* 1.5 V gate drive
* Low gate threshold voltage: Vth = 0.5~1.0 V
* Small package Marking Equivalent Circuit 2SK2825 Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Drain-source voltage Gate-source v
