A1441

Silicon PNP Power Transistor

A1441 Features

* a high hFE at low VCE(sat),which is ideal for use as a driver in DC/DC converters and actuators. i.cnABSOLUTE MAXIMUM RATINGS(Ta=25℃) .iscsemSYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V wwwVCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -7.0 V IC Col

A1441 General Description


*Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -60V(Min)
*High DC Current Gain- : hFE= 100(Min)@ (VCE= -2V , IC= -1A)
*Low Saturation Voltage- : VCE(sat)= -0.3V(Max)@ (IC= -3A, IB=B -0.15A) APPLICATIONS
*This type of power transistor is developed for high-speed switching and .

A1441 Datasheet (215.63 KB)

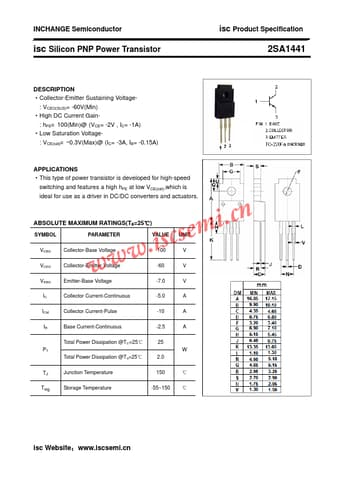

Preview of A1441 PDF

Datasheet Details

Part number:

A1441

Manufacturer:

INCHANGE

File Size:

215.63 KB

Description:

Silicon pnp power transistor.
