BD343 - PNP Transistor

BD343 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor BD343 .
Excellent Safe Operating Area. High DC Current Gain- : hFE=15-100(Min)@IC= -8A. Low Saturation Voltage- : VCE(sat)= -1.

BD343 Applications

* Designed for high power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -40 V VCEO Collector-Emitter Voltage -40 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -12 A ICM Collect

📥 Download Datasheet

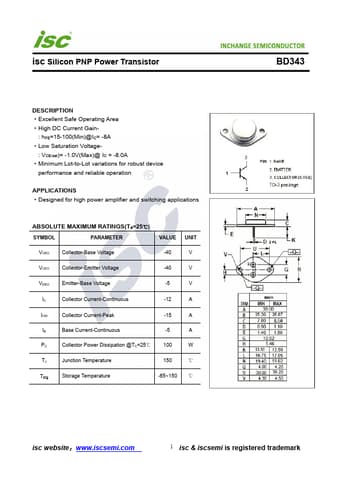

Preview of BD343 PDF
datasheet Preview Page 2

Datasheet Details

Part number
BD343
Manufacturer
INCHANGE
File Size
176.16 KB
Datasheet
BD343-INCHANGE.pdf
Description
PNP Transistor
