BUK436-200B - N-Channel MOSFET

This page provides the datasheet information for the BUK436-200B, a member of the BUK436-200A N-Channel MOSFET family.

Datasheet Summary

Description

Drain Source Voltage- : VDSS=200V(Min) Low RDS(ON) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for Switched Mode Power Supplies (SMPS), motor control,welding, and in general purpose switching

📥 Download Datasheet

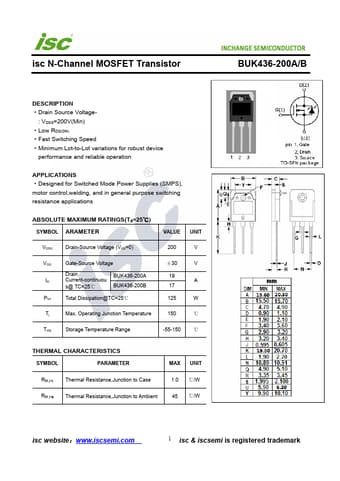

Datasheet preview – BUK436-200B

Datasheet Details

Part number BUK436-200B
Manufacturer INCHANGE
File Size 231.09 KB
Description N-Channel MOSFET
Datasheet download datasheet BUK436-200B Datasheet
Additional preview pages of the BUK436-200B datasheet.

📁 Similar Datasheet

Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc N-Channel MOSFET Transistor INCHANGE Semiconductor BUK436-200A/B DESCRIPTION ·Drain Source Voltage- : VDSS=200V(Min) ·Low RDS(ON) ·Fast Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for Switched Mode Power Supplies (SMPS), motor control,welding, and in general purpose switching resistance applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 200 V VGS Gate-Source Voltage Drain BUK436-200A ID Current-continuou s@ TC=25℃ BUK436-200B Ptot Total Dissipation@TC=25℃ ±30 V 19 A 17 125 W Tj Max.
