BUK436W-200B PowerMOS transistor

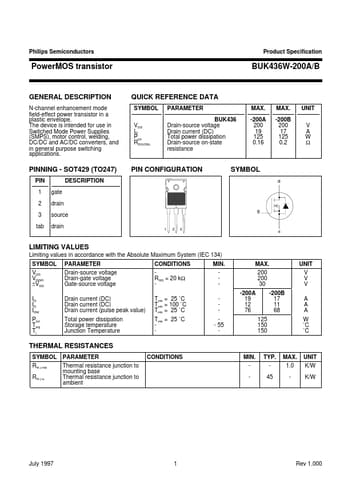

📥 Download Datasheet  Datasheet Preview Page 1

Description

Philips Semiconductors Product Specification PowerMOS transistor BUK436W-200A/B GENERAL .
N-channel enhancement mode field-effect power transistor in a plastic envelope.

📥 Download Datasheet

Preview of BUK436W-200B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* QUICK REFERENCE DATA SYMBOL VDS ID Ptot RDS(ON) PARAMETER BUK436 Drain-source voltage Drain current (DC) Total power dissipation Drain-source on-state resistance MAX. -200A 200 19 125 0.16 MAX. -200B 200 17 125 0.2 UNIT V A W Ω PINNING - SOT429 (TO247) PIN 1 2 3 tab gate drain source drain DESCRI
