BUK436-60A - N-Channel MOSFET

Datasheet Summary

Description

Drain Source Voltage- : VDSS=60V(Min) Low RDS(ON) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for Switched Mode Power Supplies (SMPS), motor control,welding, and in general purpose switching r

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	BUK436-60A
Manufacturer	INCHANGE
File Size	231.22 KB
Description	N-Channel MOSFET
Datasheet	BUK436-60A Datasheet

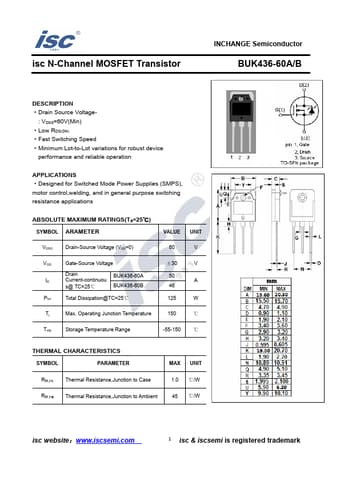

Additional preview pages of the BUK436-60A datasheet.

📁 Similar Datasheet

BUK436-100A - PowerMOS transistor (Philips)
BUK436-100B - PowerMOS transistor (Philips)
BUK436W-1000B - PowerMOS transistor (NXP)
BUK436W-200A - PowerMOS transistor (NXP)
BUK436W-200B - PowerMOS transistor (NXP)
BUK436W-800A - PowerMOS transistor (NXP)
BUK436W-800B - PowerMOS transistor (NXP)
BUK437-400A - (BUK437-400A/B) Power MOS Transistor (Philips)
BUK437-400B - (BUK437-400A/B) Power MOS Transistor (Philips)
BUK437-500A - (BUK437-500A/B) Power MOS Transistor (Philips)

Other Datasheets by INCHANGE

BUK436-60B - N-Channel MOSFET
BUK436-100A - N-Channel MOSFET
BUK436-100B - N-Channel MOSFET
BUK436-200A - N-Channel MOSFET
BUK436-200B - N-Channel MOSFET
BUK436-800A - N-Channel MOSFET
BUK436-800B - N-Channel MOSFET
BUK437-500B - N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

isc N-Channel MOSFET Transistor INCHANGE Semiconductor BUK436-60A/B DESCRIPTION ·Drain Source Voltage- : VDSS=60V(Min) ·Low RDS(ON) ·Fast Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for Switched Mode Power Supplies (SMPS), motor control,welding, and in general purpose switching resistance applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 60 V VGS Gate-Source Voltage Drain BUK436-60A ID Current-continuou s@ TC=25℃ BUK436-60B Ptot Total Dissipation@TC=25℃ ±30 V 50 A 46 125 W Tj Max.

Published: Sep 30, 2020 |
