C6093 NPN Transistor

C6093 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC6093 .
Low saturation voltage. Built-in damper diode type. 100% avalanche tested. Minimum Lot-to-Lot variations for robust device performanc.

C6093 Applications

* Designed for high voltage color display horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuo

📥 Download Datasheet

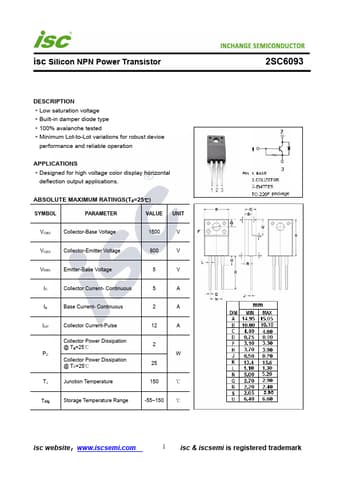

Preview of C6093 PDF
datasheet Preview Page 2

Datasheet Details

Part number
C6093
Manufacturer
INCHANGE
File Size
177.35 KB
Datasheet
C6093-INCHANGE.pdf
Description
NPN Transistor
