DKI04046 - N-Channel MOSFET

INCHANGE

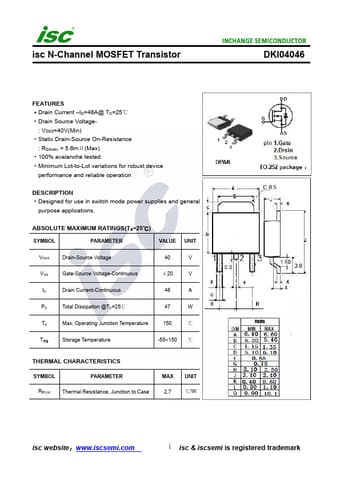

DKI04046 Datasheet Preview — Preview of DKI04046 PDF

Datasheet Details

Part number	DKI04046
Manufacturer	INCHANGE
File Size	261.22 KB
Description	N-Channel MOSFET
Datasheet	DKI04046-INCHANGE.pdf

DKI04046 Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 40 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 48 A PD Total Dissipation @TC=25℃ 47 W TJ Max.Operating Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junction to Case MAX UNIT 2.7 ℃

Features

Drain Current.
ID=48A@ TC=25℃.
Drain Source Voltage- : VDSS=40V(Min).
Static Drain-Source On-Resistance : RDS(on) = 5.6mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
