DKI06186 - N-Channel MOSFET

INCHANGE

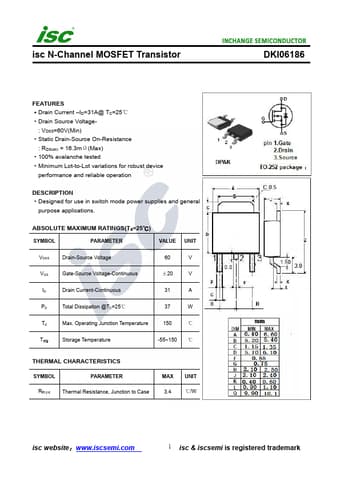

DKI06186 Datasheet Preview — Preview of DKI06186 PDF

Datasheet Details

Part number	DKI06186
Manufacturer	INCHANGE
File Size	261.05 KB
Description	N-Channel MOSFET
Datasheet	DKI06186-INCHANGE.pdf

DKI06186 Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 31 A PD Total Dissipation @TC=25℃ 37 W TJ Max.Operating Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junction to Case MAX UNIT 3.4 ℃

Features

Drain Current.
ID=31A@ TC=25℃.
Drain Source Voltage- : VDSS=60V(Min).
Static Drain-Source On-Resistance : RDS(on) = 16.3mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
