DKI06261 - N Channel Trench Power MOSFET

SANKEN

📥 Download Datasheet

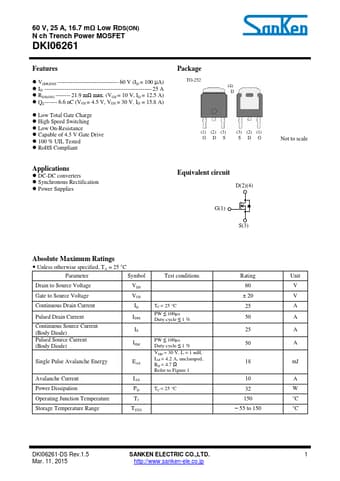

DKI06261 Datasheet Preview — Preview of DKI06261 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DKI06261
Manufacturer	Sanken ↗
File Size	683.22 KB
Description	N Channel Trench Power MOSFET
Datasheet	DKI06261-SANKEN.pdf

DKI06261 Product details

Features

V(BR)DSS --------------------------------- 60 V (ID = 100 µA).
ID ---------------------------------------------------------- 25 A.
RDS(ON) -------- 21.9 mΩ max. (VGS = 10 V, ID = 12.5 A).
Qg------- 6.6 nC (VGS = 4.5 V, VDS = 30 V, ID = 15.8 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.
