DKI04103

N-Channel MOSFET

DKI04103 Features

* Drain Current

* ID=29A@ TC=25℃

* Drain Source Voltage- : VDSS=40V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 11.8mΩ(Max)

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* Designed for use i

DKI04103 General Description


*Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 40 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 29 A PD Total Dissipation @TC=25℃ .

DKI04103 Datasheet (261.26 KB)

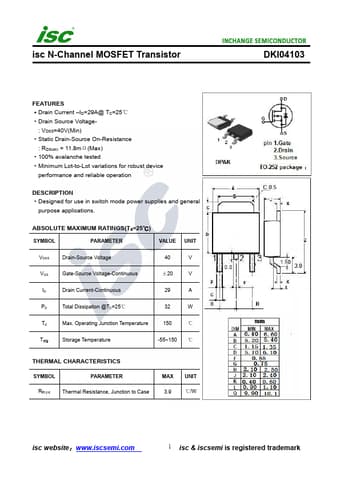

Preview of DKI04103 PDF

Datasheet Details

Part number:

DKI04103

Manufacturer:

INCHANGE

File Size:

261.26 KB

Description:

N-channel mosfet.
