DKI06261

N-Channel MOSFET

DKI06261 Features

* Drain Current

* ID=25A@ TC=25℃

* Drain Source Voltage- : VDSS=60V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 21.9mΩ(Max)

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* Designed for use i

DKI06261 General Description


*Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 25 A PD Total Dissipation @TC=25℃ .

DKI06261 Datasheet (260.68 KB)

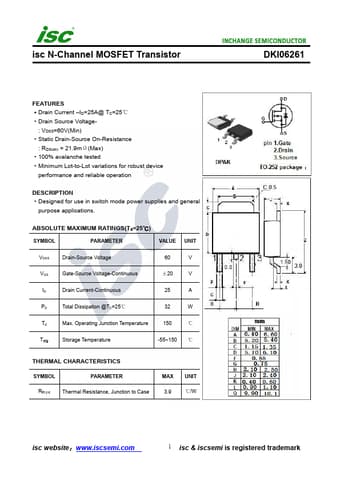

Preview of DKI06261 PDF

Datasheet Details

Part number:

DKI06261

Manufacturer:

INCHANGE

File Size:

260.68 KB

Description:

N-channel mosfet.
