DKI04046 - N Channel Trench Power MOSFET

SANKEN

📥 Download Datasheet

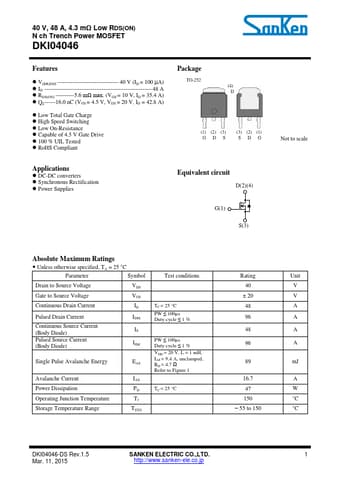

DKI04046 Datasheet Preview — Preview of DKI04046 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DKI04046
Manufacturer	Sanken ↗
File Size	682.31 KB
Description	N Channel Trench Power MOSFET
Datasheet	DKI04046-SANKEN.pdf

DKI04046 Product details

Features

V(BR)DSS --------------------------------- 40 V (ID = 100 µA).
ID ---------------------------------------------------------- 48 A.
RDS(ON) ----------5.6 mΩ max. (VGS = 10 V, ID = 35.4 A).
Qg------16.0 nC (VGS = 4.5 V, VDS = 20 V, ID = 42.8 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.
