IPI65R420CFD - N-Channel MOSFET

INCHANGE

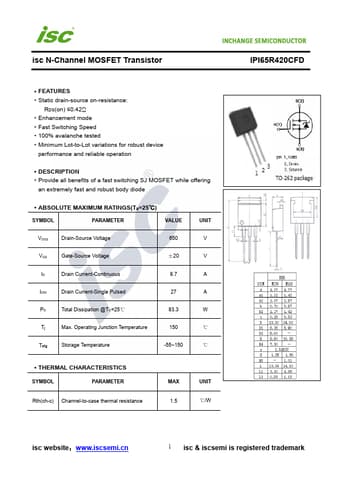

IPI65R420CFD Datasheet Preview — Preview of IPI65R420CFD PDF

Datasheet Details

Part number	IPI65R420CFD
Manufacturer	INCHANGE
File Size	282.82 KB
Description	N-Channel MOSFET
Datasheet	IPI65R420CFD-INCHANGE.pdf

IPI65R420CFD Product details

Description

Provide all benefits of a fast switching SJ MOSFET while offering an extremely fast and robust body diode ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage ±20 V ID Drain Current-Continuous 8.7 A IDM Drain Current-Single Pulsed 27 A PD Total Dissipation @TC=25℃ 83.3 W Tj Max.Operating Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PA

Features

Static drain-source on-resistance: RDS(on) ≤0.42Ω.
Enhancement mode.
Fast Switching Speed.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
