IRF1405 N-Channel MOSFET

IRF1405 Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRF1405，IIRF1405 *.

IRF1405 Features

* Static drain-source on-resistance: RDS(on) ≤5.3mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

IRF1405 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 55 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 169 IDM Drain Current-Single Pulsed 680 PD Total Dissipation @TC=25℃ 330 Tj Max. Operating Junction Temperature 175 Tstg Storage T

📥 Download Datasheet

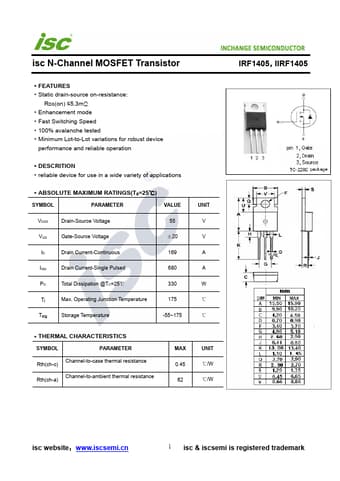

Preview of IRF1405 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRF1405
Manufacturer
INCHANGE
File Size
241.81 KB
Datasheet
IRF1405-INCHANGE.pdf
Description
N-Channel MOSFET
