IRF1407 - N-Channel MOSFET

IRF1407 Description

isc N-Channel MOSFET Transistor IRF1407，IIRF1407 *.

IRF1407 Features

* Static drain-source on-resistance: RDS(on) ≤7.8mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

IRF1407 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 75 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 130 IDM Drain Current-Single Pulsed 520 PD Total Dissipation @TC=25℃ 330 Tj Max. Operating Junction Temperature 175 Tstg Storage T

📥 Download Datasheet

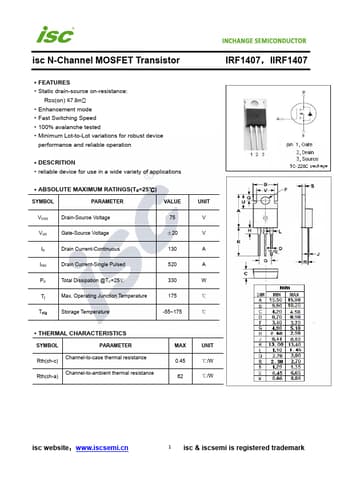

Preview of IRF1407 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRF1407
Manufacturer
INCHANGE
File Size
241.08 KB
Datasheet
IRF1407-INCHANGE.pdf
Description
N-Channel MOSFET
