IRF1404S - N-Channel MOSFET

IRF1404S Description

isc N-Channel MOSFET Transistor *.

IRF1404S Features

* With TO-263( D2PAK ) packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor IRF1404S
* APPLI

IRF1404S Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 40 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous;Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 162 115 650 PD Total Dissipation 200 Tj Opera

📥 Download Datasheet

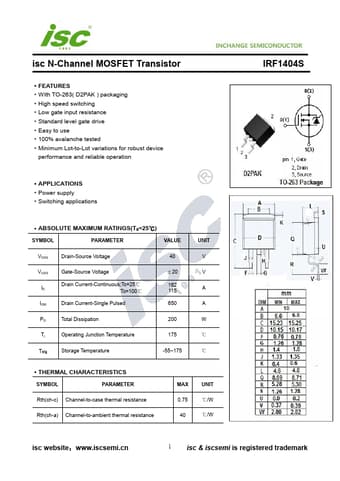

Preview of IRF1404S PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRF1404S
Manufacturer
INCHANGE
File Size
247.74 KB
Datasheet
IRF1404S-INCHANGE.pdf
Description
N-Channel MOSFET
