IRF1407L - N-Channel MOSFET

IRF1407L Description

isc N-Channel MOSFET Transistor *.

IRF1407L Features

* Static drain-source on-resistance: RDS(on) ≤7.8mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

IRF1407L Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 75 V VGSS Gate-Source Voltage ±20 V ID Drain Current-ContinuousTc=25℃ Tc=100℃ 100 70 A IDM Drain Current-Single Pulsed 520 A PD Total Dissipation @TC=25℃ 200 W Tch Max. Operating Ju

📥 Download Datasheet

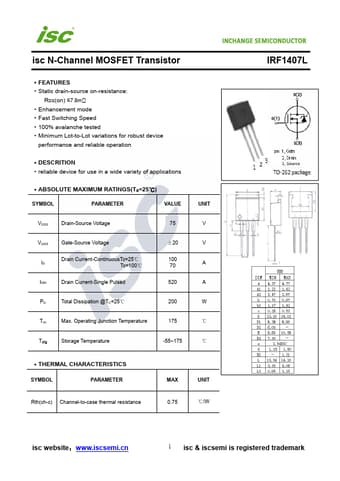

Preview of IRF1407L PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRF1407L
Manufacturer
INCHANGE
File Size
282.59 KB
Datasheet
IRF1407L-INCHANGE.pdf
Description
N-Channel MOSFET
