IRFIZ44N - N-Channel MOSFET

IRFIZ44N Description

Isc N-Channel MOSFET Transistor *.

IRFIZ44N Features

* With TO-220F package
* Low input capacitance and gate charge
* Low gate input resistance
* Reduced switching and conduction losses
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRFIZ44N Applications

* Switching applications INCHANGE Semiconductor IRFIZ44N
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 55 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous @Tc=25℃ (VGS at 10V) Tc=100℃ Drain Current-Single Pulsed ±20 30 22 160 PD To

📥 Download Datasheet

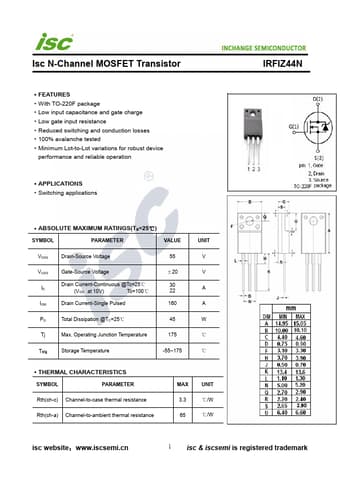

Preview of IRFIZ44N PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFIZ44N
Manufacturer
INCHANGE
File Size
196.33 KB
Datasheet
IRFIZ44N-INCHANGE.pdf
Description
N-Channel MOSFET
