IRFSL4410 N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor *.

📥 Download Datasheet

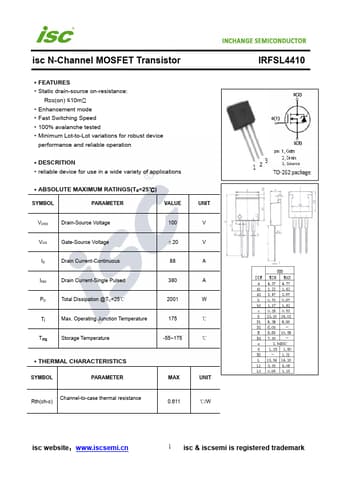

IRFSL4410 Datasheet Preview — Preview of IRFSL4410 PDF

Datasheet Specifications

Part number: IRFSL4410
Manufacturer: INCHANGE
File Size: 282.37 KB
Datasheet: IRFSL4410-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤10mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 88 IDM Drain Current-Single Pulsed 380 PD Total Dissipation @TC=25℃ 2001 Tj Max. Operating Junction Temperature 175 Tstg Storage
